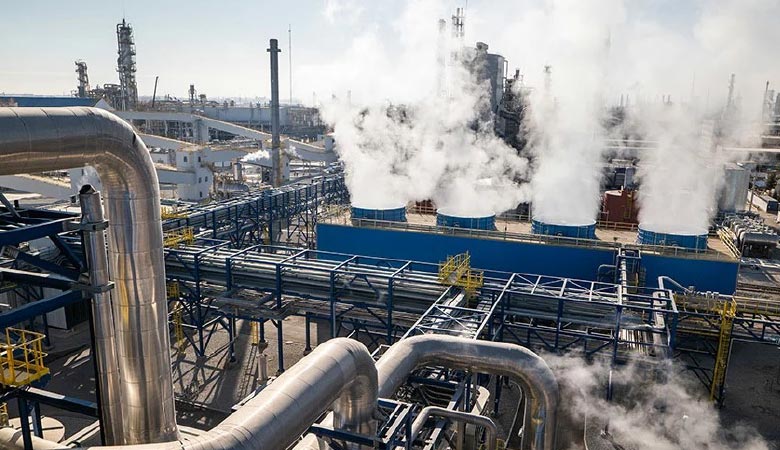

Introduction: The Unsung Heroes of Nitric Acid Production
Nitric acid production is a demanding process, characterized by high temperatures, pressures, and extremely corrosive environments. Within these challenging conditions, high-performance butterfly valves play a crucial role, ensuring safe, efficient, and reliable operations. This article delves into the critical applications, technical considerations, and best practices for deploying these essential components in nitric acid plants.
Key Applications in Nitric Acid Plants
- Ammonia Oxidation and NOx Gas Handling:
- Handling high-temperature NOx gases exiting ammonia oxidation reactors (800–950°C).
- Regulating medium-temperature gases before and after gas coolers (200–400°C).
- Dilute Nitric Acid Absorption and Circulation:
- Managing dilute nitric acid (30–60% HNO₃) circulation in absorption towers.
- Distributing acid solutions in NOx gas scrubbing systems.
- Concentrated Nitric Acid Concentration and Transfer:
- Transporting 98% concentrated nitric acid (fuming nitric acid) from concentration towers.
- Controlling flow in and out of high-temperature concentrated nitric acid storage tanks.
- Waste Gas Treatment and Tail Gas Recovery:
- Neutralizing nitric acid tail gases in alkaline (NaOH) scrubbing towers.
- Managing acidic wastewater discharge from nitric acid mist collectors.
- Steam and Condensate Systems:
- Handling steam pipelines for nitric acid concentration heat recovery (10–25 bar).
- Managing condensate recovery lines containing trace nitric acid.
Critical Technical Considerations
- Material Selection:
- Dilute Nitric Acid (<65%): PTFE-lined butterfly valves.
- Concentrated Nitric Acid (>65%): Titanium or zirconium alloy valves.
- High-Temperature NOx Gas: Inconel 625 or ceramic-coated metal hard seals.
- Sealing Technologies:
- Gaseous Media: Metal hard seals with elastic compensation structures.
- Liquid Media: Fully lined fluoropolymer soft seals with anti-cavitation flow paths.
- Actuation:
- Explosion-proof pneumatic actuators.
- Electric actuators.
- Hydraulic actuators.
Valve Selection and Maintenance Best Practices
- Selection:
- Carefully consider media corrosiveness, temperature, and pressure.
- Match valve size to pipeline diameter and flow rate.
- Select appropriate actuators based on control requirements.
- Maintenance:
- Regularly inspect liners for swelling or cracking.
- Lubricate valve stem seals with nitric acid-resistant grease.
- Properly store spare valves to prevent moisture and corrosion.

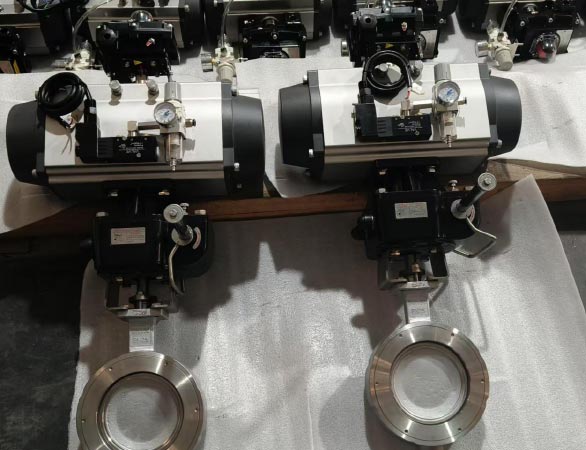

Advantages of High-Performance Butterfly Valves
- Superior Corrosion Resistance: Specialized materials and liners withstand the harsh effects of nitric acid.
- High-Temperature and High-Pressure Capability: Designed to operate reliably in demanding process conditions.
- Precise Flow Control: Enables accurate regulation of media flow, meeting critical process requirements.
- Extended Service Life: High-quality materials and manufacturing ensure long-term, stable operation.
Conclusion
High-performance butterfly valves are indispensable components in nitric acid plants. By understanding their applications, technical requirements, and maintenance needs, operators can optimize plant performance, enhance safety, and ensure long-term reliability. Contact Shengfei today for high-quality butterfly valve solutions tailored to nitric acid plants processing needs.
