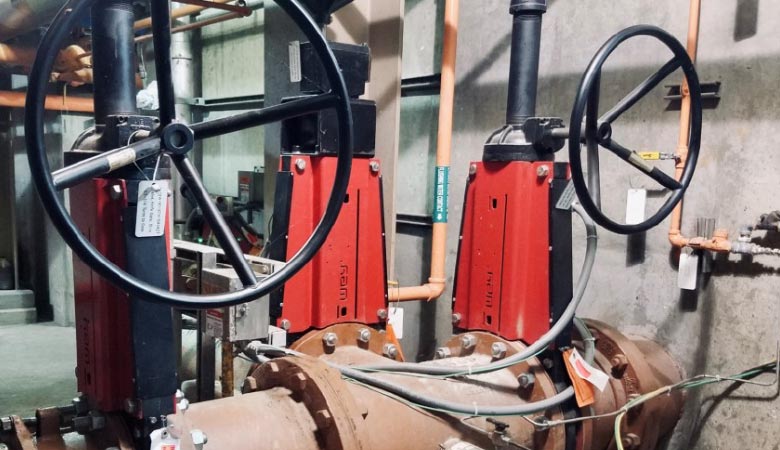

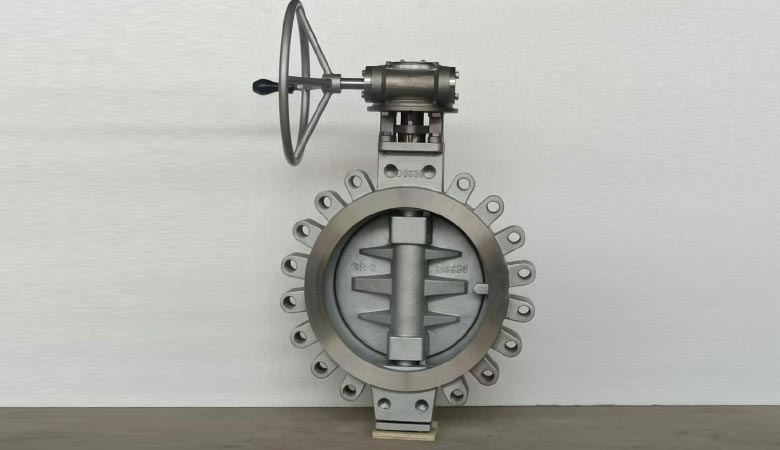

High-performance butterfly valves are essential components in modern wastewater treatment plants, offering reliable flow control, media isolation, and system protection. Their compact design, flexible operation, excellent sealing capabilities, and robust corrosion resistance make them ideal for handling the demanding conditions of wastewater treatment. This article explores the specific applications, advantages, and selection criteria for these critical valves.
- Corrosion Resistance: Constructed from materials like stainless steel, duplex steel, PTFE linings, or rubber linings, these valves withstand the corrosive effects of acids, alkalis, salts, and organic compounds found in wastewater.
- Abrasion Resistance: Hardened valve discs and seats, or wear-resistant coatings like tungsten carbide, protect against the abrasive effects of particles and fibers in sewage.
- Superior Sealing: Multi-layered sealing structures (EPDM, NBR, PTFE) ensure zero leakage under high pressure or vacuum conditions.
- Lightweight Design: Compared to gate or ball valves, butterfly valves are lighter and simpler, facilitating installation in large-diameter pipelines.
- Rapid Actuation: Electric, pneumatic, or hydraulic actuators enable automated control and quick response, essential for emergency shutdowns.
Typical Applications in Wastewater Treatment Plants:
- Inlet and Pre-treatment:
- Flow regulation to balance treatment loads.
- Control of sewage containing solid impurities in coarse and fine screen pipelines.
- Biological Treatment and Sedimentation:
- Air flow control in aeration tanks to optimize microbial reactions.
- Sludge return and discharge control in sedimentation tanks.
- Pump Stations and Piping Systems:
- Isolation valves for pump inlets and outlets to prevent backflow.
- Switching flow direction in multi-process systems.
- Advanced Treatment and Disinfection:
- Chemical dosing control for coagulants and disinfectants (sodium hypochlorite).
- Pressure regulation in membrane treatment systems (ultrafiltration, reverse osmosis).
- Sludge Treatment:
- Feed control for dewatering machines (belt or centrifugal).
- High-temperature butterfly valves for drying and incineration pipelines.
Selection and Design Considerations:
- Material Selection:
- 316L stainless steel for general corrosive wastewater.
- Duplex steel or Hastelloy for high chloride environments.
- PTFE-lined valves for strong acids and alkalis.
- EPDM (weak acids/alkalis), NBR (oily media), PTFE (strong corrosives) for sealing.
- Structural Design:
- Double or triple offset designs for high differential pressure and frequent operation.
- Full bore design to prevent fiber or particle blockage.
- Actuation:
- Manual for small diameters or infrequent operation.
- Electric/pneumatic for automated control (PLC/SCADA).
Advantages Over Other Valve Types:
- Compared to Gate Valves: Faster actuation, lighter weight, smaller footprint.
- Compared to Ball Valves: Lower cost, especially in DN300+ pipelines.
- Compared to Globe Valves: Lower flow resistance, energy savings.
Maintenance and Failure Prevention:
- Regular Inspections: Seal wear, disc corrosion, lining integrity.
- Anti-Seizing Measures: Hard seals or regular flushing in particulate media.
- Automated System Integration: Sensor-based monitoring for predictive maintenance.
Real-World Applications:
- Municipal wastewater plant using PTFE-lined butterfly valves in aeration pipelines, tripling service life.
- Industrial wastewater treatment station using double or triple offset metal-seated butterfly valves, reducing maintenance costs by 40%.
Conclusion:
High-performance butterfly valves are crucial for efficient and reliable wastewater treatment. Proper selection and maintenance ensure optimal system performance, reduced lifecycle costs, and environmental compliance. Contact Shengfei today for high-quality butterfly valve solutions tailored to wastewater treatment processing needs.
