Discover Our High Performance Butterfly Valves
Highest reliability and performance, suitable for critical service applications. The ideal choice of global customers.
High Performance Butterfly Valves
Product Overview
Shengfei double offset high performance butterfly valves including soft seat, metal seat and fire safe seat butterfly valves, bi-directional zero leakage, suitable for high temperature and high pressure working environment.
Main Benefits
High performance
Our SHENGFEI high-performance butterfly valve adopts two-way zero leakage design to ensure leak-free operation.
High durability
Low temp down to -196°C,
High temp 220°C to 482°C;
Pressure from vacuum to 160 BAR water pressure and 8 BAR air pressure.
Diversified material
Carbon steel, stainless steel, duplex stainless steels, aluminum bronze, Hastelloy, Titanium alloys and so on to meet the needs of different applications.
Critical application
Serve the industries of oil & gas, refining, nuclear & power stations, power plants, chemical, shipbuilding, petrochemical, mining, pulp & paper, etc.
Main Features：

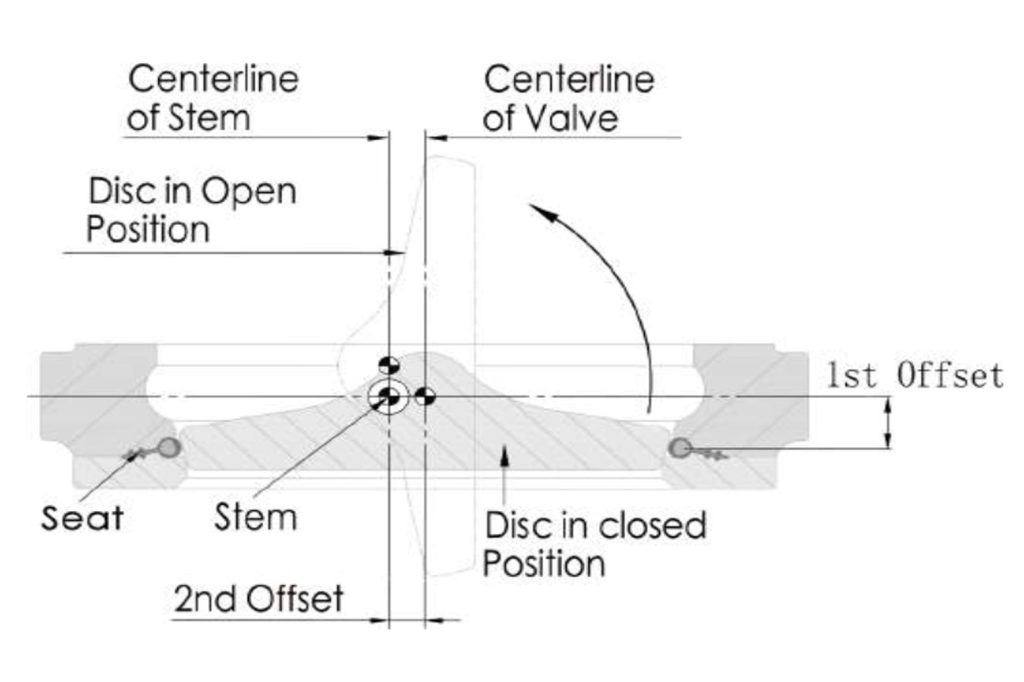

The double offset design of the SHENGFEI High Performance Butterfly Valves assures reduced seat wear and bidirectional, zero leakage shut off throughout the full pressure range. At the initial point of disc opening, the offset disc produces a cam–like action, pulling the disc from the seat. This cam–like action reduces seat wear and eliminates seat deformation when the disc is in the open position. When open, the disc does not contact the seat, therefore seat service life is extended and operating torques are reduced. As the valve closes, the cam–like action converts the rotary motion of the disc to a linear type motion to effectively push the disc onto the seat. The wiping action of the disc against the seat prevents undesirable material build-up from slurry or suspended solids.

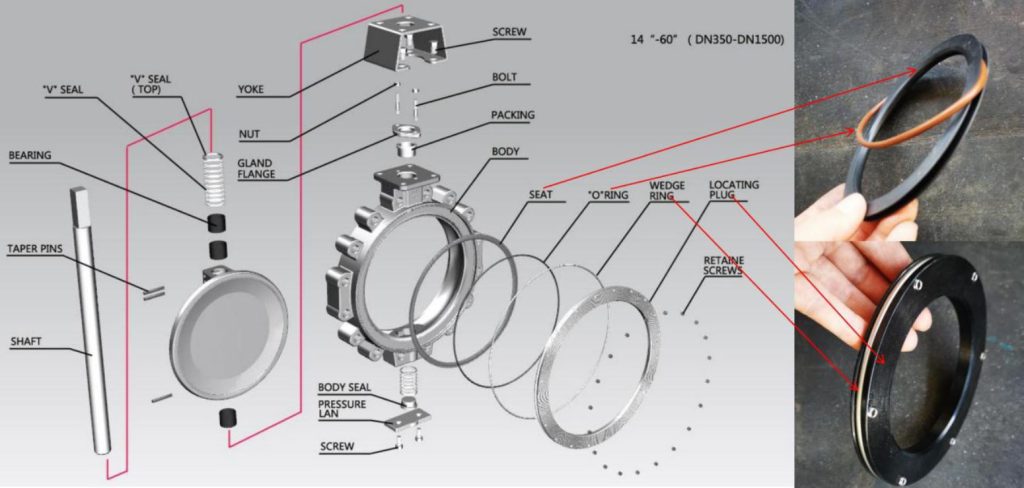

Soft Seat High Performance Butterfly Valve
Product Overview:
The RPTFE soft seat provides a bi-directional bubble tight shutoff (zero leakage). The unique seat design creates a self-energized seal in vacuum-to-low pressure applications. Under higher pressure conditions, the seat is also designed to permit, confine, and direct movement of the soft seat against the disc edge.
Advantages:
Advantages of Soft Seat High Performance Butterfly Valve
- Excellent sealing performance
- High-temperature and corrosion resistance
- Easy to install
- Low maintenance cost
Metal Seat High Performance Butterfly Valve
Product Overview:
Metal seat high performance butterfly valves by its dynamic and flexible design, applies enough force per linear inch against the disc edge (Rock-well Hardness of C66 to C70) to obtain an optimum sealing characteristic while controlling the loads between the metal surfaces. metal seat is for higher tensile strength, utilized for temperatures up to 900°F, (482°C). The wear-resistant metal seat provides industry leading low torque. Bi-directional Leakage is rated at Class V.
Components of Metal Seat High Performance Butterfly Valve
Advantages:
Advantages of Metal Seat High Performance Butterfly Valve
- Wear and corrosion resistant
- Good mechanical properties
- Long service life
- Suitable for high temperature and high pressure
Fire Safe Seat High Performance Butterfly Valve
Product Overview:
The fire safe design incorporates two patented seats which function together to seal off pipeline flow. In normal operation, the soft seat provides a bi-directional “bubble tight” shutoff (zero leakage); the metal seat provides bi-directional shutoff in the event of a fire.in conformance to industry fire-safe requirements. With little or no pressure, the Fire-Safe seat creates a self-energized seal against the disc. Higher line pressures act on the geometry of both seats to dynamically load them against the disc, creating higher sealing forces in two ways.
The Fire-Safe metal seat is made of 316L material which is shaped by a proprietary hydroforming process into its unique, patented design. Stainless steel outer bearings are included for post-fire disc and shaft alignment. Graphite Fireproof packing is used to prevent external shaft leakage. Seat replacement is a simple operation, requiring no special tools.
Application:
petrochemical, oil refining, power plant and other heavy industries.

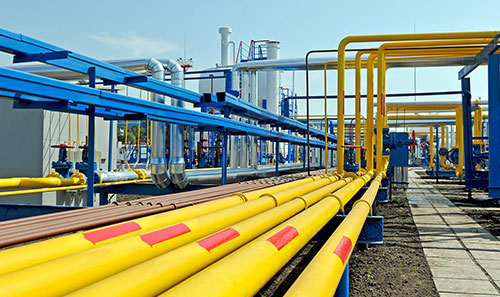

Gas Pineline

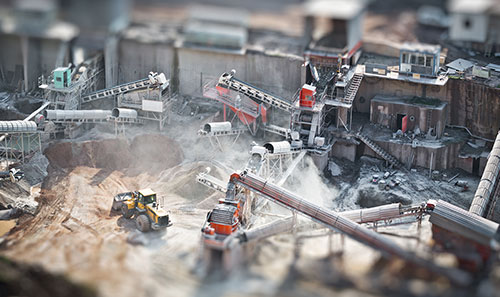

Mining

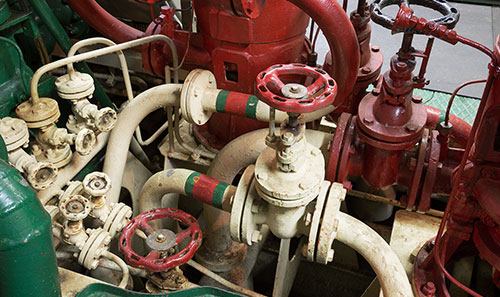

Marine industry

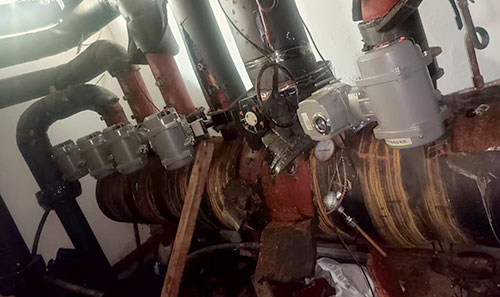

Heat supply Pipeline

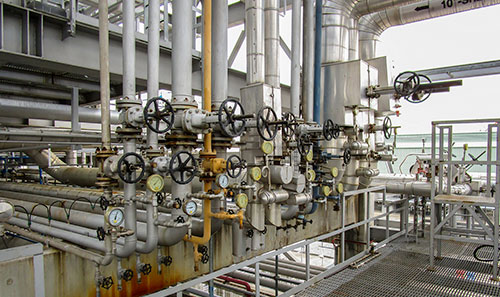

Refinery Plant

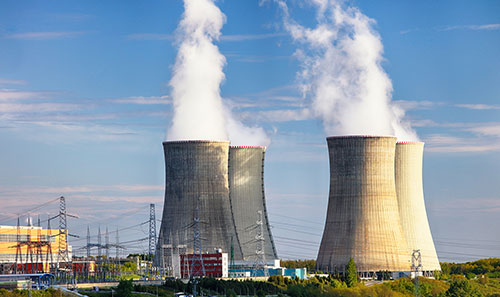

Nuclear&Power Station

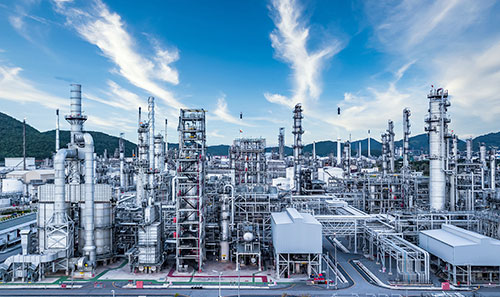

Petrochemical Plant

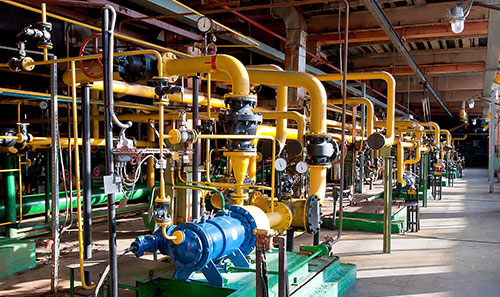

Oil Pipes
Market & Reviews
Main Market:
SHENGFEI high performance butterfly valves sell well in regions of South America, North America , Africa and Middle east couriers. Our valves are well received in Brazil，Argentina, Australia , Russia, Belarus, Netherlands, Poland, USA，Kuwait, UAE, Saudi Arab, South Africa, Chile, Turkey, Czech and so on.
Customer Reviews:
“We have already suggested SHENGFEI High-performance butterfly valve throughout our network as they have worked well for our chemical plant.”
—— European customer
Customer Reviews:
“We always trust Shengfei products, the fire safe high performance butterfly valves have played an important role in our Nature Gas project.”
—— North American customer
SHENGFEI Company Advantage
Since 2012
SHENGFEI is a professional manufacturer of high performance butterfly valves, established in 2012. We are a best-in-class factory for this range of products due to continuously improved design and performance.
High Performance Butterfly Valves
We are dedicated to providing you with first-class high performance butterfly valves. Whether you require standard or customized valves, our priority is to meet your requirements greatly without compromising on quality.
NDT Techniques
We use the latest NDT techniques such as radiography, magnetic particle, ultrasonic testing, PMI testing, and dye penetrant testing to ensure defect-free castings.
Cost-efficient Alternative
We offer a cost-efficient alternative in the current market situation. Rest assured, we deliver an excellent solution in terms of design, performance, control components, and cost-effectiveness.
Technical Support
Our team has expertise in areas of technical support, sales, and after-sales service. We are committed to delivering exceptional customer satisfaction and tailored solutions.
100% Testing
SHENGFEI offers 100% testing on every manufactured product, body shell and seat tests.
Our Certificate
SHENGFEI implementing a robust quality management system compliant to ISO 9001-2015. API607 Fire-safe certified. These certificates guarantee the quality of our high performance butterfly valves.
ISO 9001-2015 Certificate
API 607 Fire Safe Certificate
