The Backbone of Methanol Production

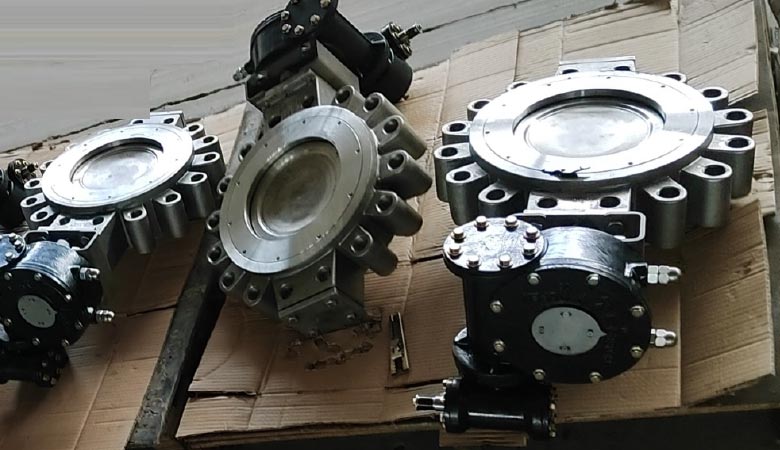

Methanol plants operate under demanding conditions, including high pressures, flammable and explosive atmospheres, and corrosive media. High-performance butterfly valves are essential components that ensure safety, reliability, and efficiency throughout the production process. This article explores the key applications of these valves in methanol plants, highlighting the critical technical aspects and maintenance strategies.
Key Applications in Methanol Plants
- Synthesis Gas Preparation and Purification:
- High-pressure transport of synthesis gas (CO+H₂) from natural gas or coal gasification (5–10 MPa).
- Regulation of acidic gases (H₂S, CO₂) in desulfurization and decarbonization units.
- Methanol Synthesis Reaction System:
- Circulating gas pipelines at the inlet and outlet of the synthesis tower (200–300°C, 8–15 MPa).
- Reactor bypass flow control.
- Crude Methanol Distillation and Separation:
- Methanol-water mixture pipelines in pre-distillation and pressurized distillation towers (containing trace formic and acetic acids).
- Reboiler steam condensate control.
- Methanol Storage, Transportation, and Filling:
- Inlet and outlet pipelines of methanol storage tanks (ambient temperature, flammable liquid).
- Quantitative control valves at filling stations.
- Wastewater and Waste Gas Treatment:
- Feed pipelines to methanol-containing wastewater neutralization tanks (pH 2–10 fluctuations).
- VOC gas regulation valves before tail gas incineration.
- Steam and Utility Systems:
- Medium-pressure steam pipelines for steam reboilers (16–25 bar).
- Cooling water circulation systems (containing corrosion inhibitors).
Critical Technical Considerations
- Material Selection:
- High-pressure synthesis gas: Duplex steel or Inconel alloy hard seal butterfly valves.
- Organic acid media: Fully lined fluoropolymer butterfly valves (PTFE/PFA).
- Flammable environments: Explosion-proof certified valves with static dissipation design.
- Sealing Design:
- Gaseous media: Double or triple eccentric metal hard seals with fire-safe structures.
- Liquid media: Fluororubber soft seals with anti-cavitation flow paths.
- Safety Features:
- ATEX/IECEx Explosion proof actuators.
- Anti static features.
- Fire safe designs.
Valve Selection and Maintenance Best Practices
- Selection:
- Match materials and sealing configurations to media corrosiveness, temperature, and pressure.
- Size valves appropriately for pipeline diameter and flow rates.
- Choose actuators based on control requirements and safety standards.
- Maintenance:
- Regularly inspect sealing surfaces for wear and actuators for responsiveness.
- Clean valve cavities to prevent methanol polymer deposits.
- Periodically replace anti-static components (e.g., gaskets, bolts).
Advantages of High-Performance Butterfly Valves
- High-Pressure Resistance: Designed to withstand the demanding pressures of synthesis gas and reactor systems.
- Explosion-Proof Safety: Certified designs prevent ignition in flammable environments.
- Corrosion Resistance: Specialized materials and liners protect against harsh chemical media.
- Efficient Flow Control: Enables precise regulation of process flows.
Conclusion
High-performance butterfly valves are vital for the safe and efficient operation of methanol plants. By understanding the specific requirements of each application and implementing rigorous maintenance practices, plant operators can maximize reliability and minimize risks.
